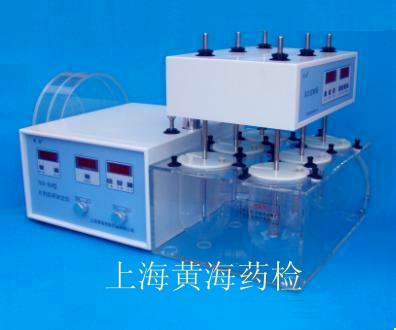

上海黄海药检片剂四用测定仪（脆碎，崩解，硬度六个杯溶出）数显SY-6D（原78X-6A）

生产厂家：H|上海黄海药检

参考价格：29800

询价：加入询价车

78X-6A型片剂四用测定仪是我公司在原78X-2型片剂四用测定仪基础上创新设计的产品，该产品技术指标均符合《中国药典2005年》版规定。是比较理想的药检测试仪器。

主要技术规格
1． 崩解部分：
吊篮上下移动距离 55±2mm
吊篮上下往复次数 30~32次/分
平底烧杯容积 1000ml
平底烧杯数量： 2只
杯内水温 37± 0.3 ℃
吊篮上升篮网至液面距离 25mm
吊篮下降篮网至杯底距离 25mm
2． 溶出部分：
转速 25～200r.p.m
转速精度 ±1％
转篮旋转摆动幅度 ≤±1mm
浆叶旋转摆动幅度 ≤±1mm
球底烧杯容积 1000ml
球底烧杯数量 6只
3．脆碎部分：
轮鼓直径： Ø286±0.20mm
轮鼓深： 39±0.30mm
轮鼓数量： 2只
转速： 25转/分、100转停机

4． 硬度部分
被测药片最大直径 25mm
最大测试压力 200N
测试精度 5N

78X-6A four functions tablet tester is a new innovate designed production which is based on former model 78X-2 four functions tablet tester. All the tester technical indicators are in line with the "Chinese Pharmacopoeia 2005" version of the provision. It is an ideal drug testing equipment.
78X Series tablet tester is the best testing equipment for research units, universities, drug checking department and pharmaceutical company.

The main technical specification：
1. the part of disintegration
the volume of flat-bottomed beaker 1000ml
the number of flat-bottomed beaker 2 pieces

2. the part of dissolution
The speed of rotation 25-200 rpm
The accuracy of rotary speed ±1%
The volume of spherical support beaker 1000 ml
The number of spherical support beaker 6 pieces


3. the part of friability
The Diameter of brake drum Ø286±0.20mm
The depth of brake drum 39±0.30mm
The number of brake drum 2 pieces The rotary speed
The rotary speed 25r/min. 100r/min will be stopped


4. the part of hardness
the max. Diameter of testing drug 25mm
the max. testing pressure 200N
the testing accuracy 5N
